Belt Conveyor

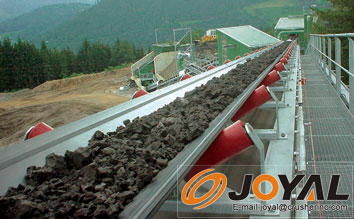

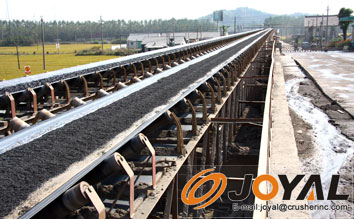

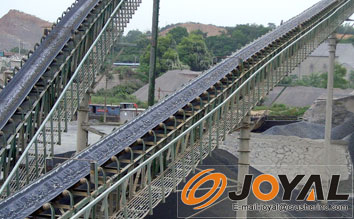

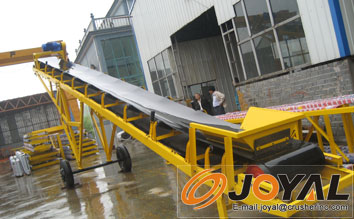

The JOYAL Belt Conveyor is used for transferring material in bulk or container. The belt conveyor is widely used in the industry of mining, building materials, metallurgy, coal and so on. PDF download Sales: +86-21-68763311

Features

1.The belt conveyors made of SJLC(heat and cold resisted material) can be operated in the temperature situation ranging from -20℃ to +40℃. The temperature of transferred material by this belt conveyor should be lower than 50℃.
2. Simple in structure, easy to maintain, long service life, high transfer capacity.

Technical Data

Model Belt Width(mm) Nominal Power(kw) Conveyor Speed(m/s) Capacity (t/h)
B400 400 <12m=2.2 0.8-2.0 40-80
12m-19m=3
20m-25m=4
B500 500 <12m=4 0.8-2.0 78-191
12m-19m=5.5
20m-30m=7.5
B650 650 <12m=4 0.8-2.0 131-323
12m-19m=5.5
20m-30m=7.5
B800 800 <10m=5.5 1.0-2.0 278-546
10m-15m=7.5
16m-20m=11
21m-25m=15
26m-30m=18.5
B1000 1000 <10m7.7 1.0-2.0 435-853
10m-15m=11
16m-23m=15
24m-30m=22
B1200 1200 <10m=11 1.0-2.0 650-1020
10m-17m=15
18m-22m=18.5
23m-26m=22
27m-30m=30
