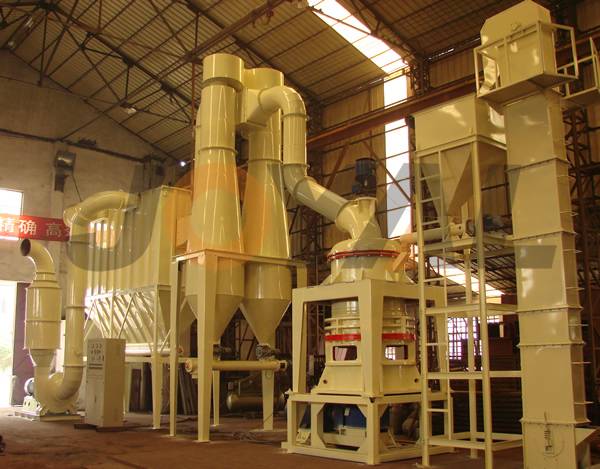

Three-ring Micro Powder Mill

The JOYAL Three-ring Micro Powder Mill(ultrafine mill) is for super-fine grinding materials with hardness less than 6 in Moh's scale and humidity less than 6 percent such as kaolin, limestone, calcite, marble,talcum, barite, gypsum, dolomite, bentonite mud,mica, pyrophyllite, sepiolite, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment and so on. The granularity of the end products is 325-2500 meshes (0.044-0.0055mm). PDF download Sales: +86-21-68763311

Features

1.High-efficiency and low consumption
With the same end-products fineness and motor power, its output can be doubled comparing with Jet Mill, Mix Mill, and Ball Mill.
2. longer service life for wearing parts.
The grinding roll and ring are made of special alloy. Generally, their service life is more than one year, but in certain condition which could up to over 3 years, like when it processes calcium carbonate and Calcite.
3.More secure and Reliable.
There is no rolling bearings and screws in the grinding cavity, so no problems caused by the wear of bearings or screws
4.Good performance on Cleansing and Environment Protection
This machine greatly reduces the industrial dust pollution and noise by applying Pulse dust collector and muffler, which reaches the National Standard.

Technical Data

Mode Roller Numbers(pcs) Ring Diameter (mm) Ring Numbers (pcs) Max. Feeding Size (mm) Output Size(mm) Capacity (kg/h) Motor Power (Kw) Overall Dimension (mm)
ZYM80 22 ø800 3 20 0.074-0.005 400-5000 75 13900×4000×6200
ZYM90 29 ø900 4 22 0.074-0.005 600-7000 45×2 14700×4800×7200
ZYM100 28 ø1000 4 22 0.074-0.005 1000-10000 132 18000×4600×8600
ZYM125 32 ø1250 4 30 0.1-0.006 2000-16000 185 14000×9000×10250
ZYM168 44 ø1680 4 30 0.1-0.009 4000-30000 315 26300×7500×11900

The capacity above is tested as per medium hard limestone.
