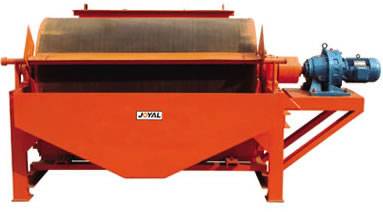

Cylindrical Magnet Separator

This kind of Separator is suitable for mining factory and coal separating factories. It is used for wet separation of the fine strong magnetic granularity from the low-intensity magnetic field or eliminates the strong magnetic granularity in the non-magnetic field.



The Separator includes three kinds of launders: semi-inverse flew vat (CTB), direct flew vat (CTS) and inverse flew vat(CTN), which are used to separate different granularities and for different technology requirements.

Features Of The Permanent-magnet Cylindrical Magnet Separator:

optimized computer design, rational magnetic circuit; strong magnetic coercively; high-remanence permanent magnet that can keep long time magnetic performance of the machine; the machine is reliable and durable so that ensure users’ interests.

Main Specifications Of Permanent-magnet Cylindrical Magnet Separator:

Model	Capacity(t/h)	Motor Power(kw)	Weight(t)
CTBø600×600	5-10	1.1	0.85
CTBø600×900	8-15	1.1	0.91
CTBø600×1200	10-20	2.2	1.13
CTBø600×1800	15-30	2.2	1.34
CTBø750×1200	12-25	3	1.49
CTBø750×1800	30-45	3	2.05
CTBø900×1800	35-60	4	3.0
CTBø1050×1800	40-75	5.5	4.2
