Other Machines

Portable Crushing Plant(Mobile Crusher)


The JOYAL portable crushing plant(mobile crusher) is not limited by the crushing place, and reduces high material transportation cost. the mobile crusher can crush materials on site or work nearly. The Portable crushing plant is widely used in the industry of mining, metallurgy, building materials, traffic, and water conservancy facilities and so on.

Features Of Portable Crushing Plant(mobile crusher):

1. Move easily.It can go to the crushing place where is difficult to go. It not only can drive on the smooth road, but also on the bumpy road.
2. Compact structure and simple operation. Integrative equipment group with trailer saves the working area. With generator, motor and control box, it can work in any place even there is no electricity. With supporting equipment on the trailer, so no need to install the machine.
3. Save the cost. Crush the materials on site, reduce the transportation cost.
4. Wide application. The crushing plant can work as independent unit; work with other unit to do primary and secondary crushing; work with two other units to do primary, secondary, and fine crushing; working as a production line with the screening equipment (firstly screening then crushing, or firstly crushing then screening.)
5. Good performance and convenient maintenance. The crushers, vibrating feeders, and vibrating screens are from Shanghai Joyal Heavy Industry, so the quality is reliable and stable. Material is delivered by belt conveyors, which is simple in operation, easy maintenance, and low investment.
6. Flexible configuration. Can provide suitable portable crushing plant based on customers working site, material typical, and particle shape requirement. Such as single unit, combined units, self-load belt conveyor unit and so on.

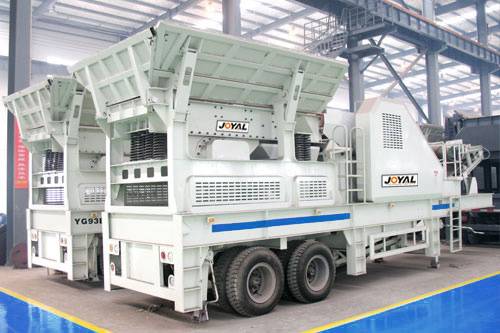

Main Specifications Of Portable Jaw Crushing Plant:



Model Vibrating Feeder



Jaw Crusher

Belt Conveyor Extended Belt Conveyor Capacity (t/h) Power (kw)

Overall DimensionL×W×H(mm)

Weight(t)
YG938E69

GZD960×

3800

PE600×900 B650×7M Optional 70-150 91.5

13200×

2900×

4700

42
YG1142E710

GZD1100×

4200

PE750×1060 B800×9M Optional 90-200 134

15000×

3100×

5100

55
YG1349E912

GZD1300×

4900

PE900×1200 B1000×11M Optional 150-300 146

17000×

3300×

5600

72

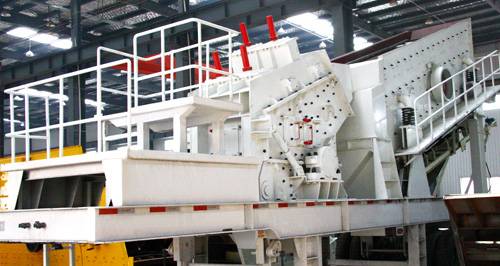

Main Specifications Of Portable Impact Crushing Plant:

Portable Crushing Plant


Model Vibrating Screen Impact Crusher Belt Conveyor Capacity (t/h) Power (kw)

 Overall Dimension

L×W×H (mm)

weight

(t)

Y3S1548F1010 3YZS1548 PF1010 B500×7M 50-250 70-90

12500×

2800×

6000

42
Y3S1848F1210 3YZS1848 PF1210 B650×7M 70-300 128.5-150.5

12500×

3000×

6500

46
Y3S1860F1214 3YZS1860 PF1214 B650×8M 90-400 154-190

13500×

3000×

6500

51
Y3S2160F1315 3YZS2160 PF1315 B800×8M 120-450 210-297

14000×
3200×

6800
57

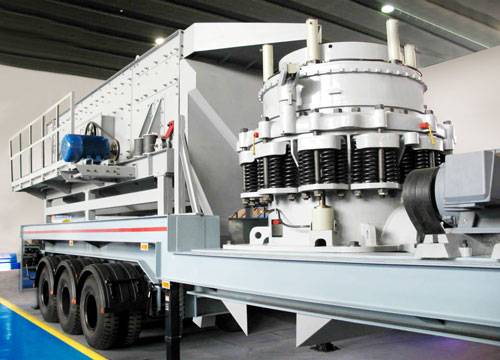

Main Specifications Of Portable Cone Crushing Plant:

Portable Crushing Plant


Model Vibrating Screen Cone Crusher Belt Conveyor Capacity (t/h) Power (kw)

 Overall Dimension

L×W×H (mm)



Weight

(t)

Y3S1548Y900 3YZS1548 PYB900 B500×7M 50-200 75

13000×

2800×

6400

43
Y3S1848S36 3YZS1848 ZYS36 B650×7M 70-300 99-134

13000×

3000×

6700

47
Y3S1860S51 3YZS1860 ZYS51 B650×8M 120-400 212.5-220.5

14000×

3000×

6700

53
Y3S2160H220 3YZS2160 HP220 B800×8M 140-450 257.5-264.5

14000×

3200×

6700

58


Attachments: JOYAL Portable Crushing Plant Series -- Brochure -- English (1530 KB)
