How Cone Crusher Works

The Cone crusher is suitable for crushing various mid-hard and above mid-hard ores and rocks. The cone crusher has the advantages of reliable construction, high prod activity, easy adjustment and less cost in operation. The spring release system of crusher acts an overload protection system that allows tramp to pass through the crushing chamber without damage to the crusher. Two kinds of sealed formation dry oil and water are used, the plaster stone and engine oil are separated, and reliable performance is ensured.

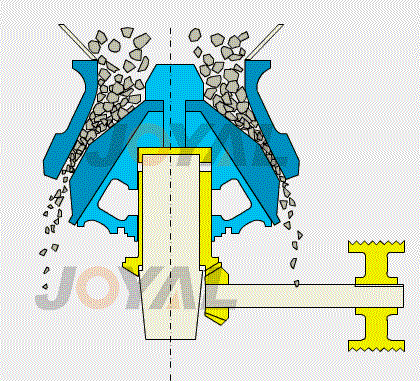

The Cone crusher crushes materials by the working surface between the movable cone and fixed cone. The movable cone of the cone crusher is supported by spherical bearing and fixed on a hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are driven by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is driven by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve of cone crusher rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the discharging hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharging hole; consequently the output size is determined.
